Unfaced Building Insulation (Per SqFT)

$1.06$3.43 per sq ft

SKU: UNFACED_BATT_SQFT Categories: ,

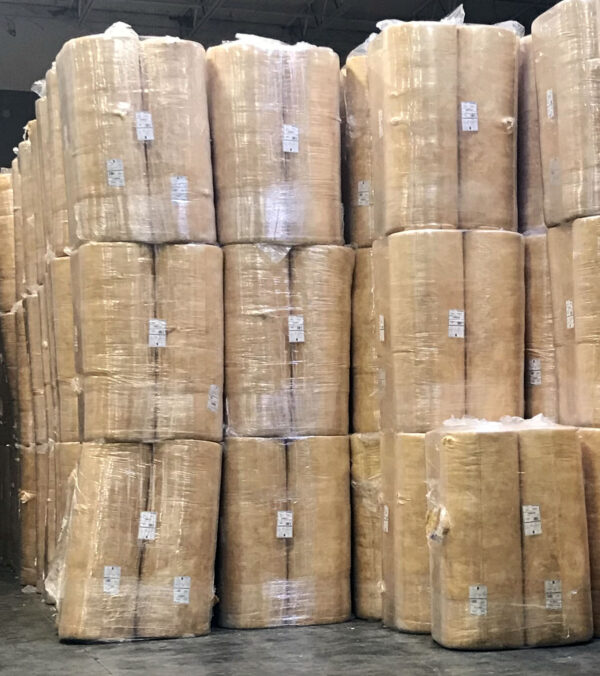

Batt insulation only that comes in widths from 4′ to 6′ and thicknesses of 3″ to 9.25″ single piece. Also can be used in a combination application of batt (unfaced) and faced insulation to make your insulation thicker for a higher R-value. Several layers of unfaced insulation can achieve higher R values. Batt rolls widths and lengths can be cut to fit on site.

Illustration of Insulation Measurement

Supporting insulation to roof and wall see items stick pins and washers, Tuffbond adhesive or steel banding.

Basic Use: CertainTeed Fiber Glass Metal Building Insulation 202-96 is a flexible blanket insulation furnished in rolls and intended to be laminated on one side with a suitable vapor retarder. It is used as a thermal and acoustical insulation in the roofs and sidewalls of pre-engineered metal buildings and post frame construction.

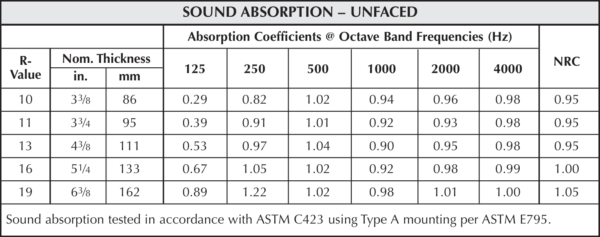

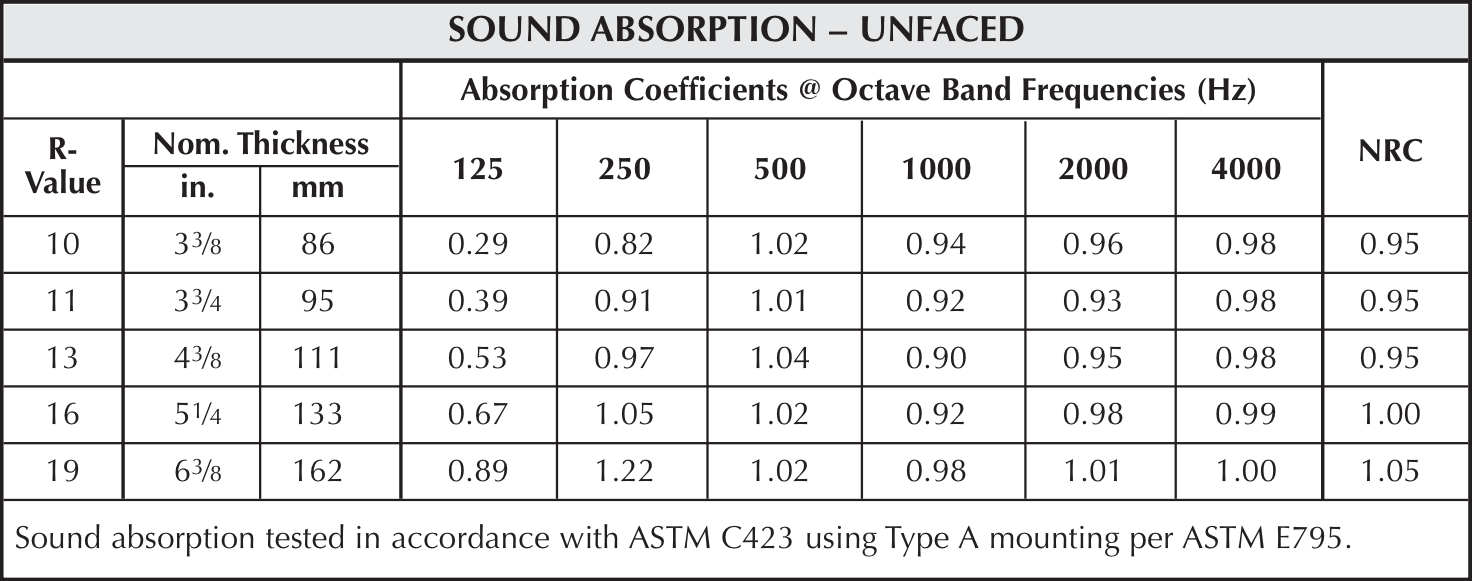

Benefits: Metal Building Insulation reduces transmission of exterior sound to the interior of the building and absorbs reverberating sounds within the building.

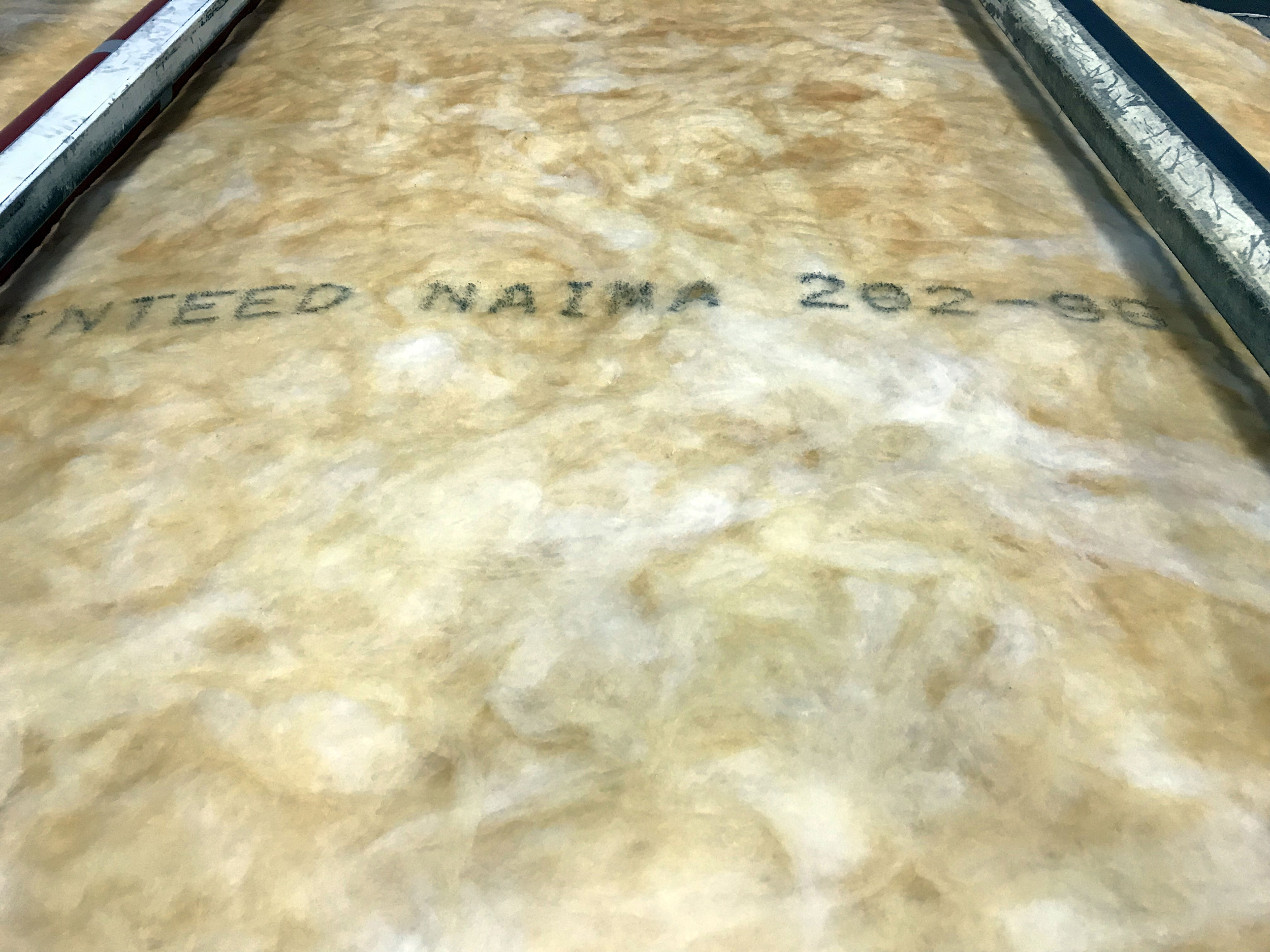

Composition and Materials: Composed of inorganic glass fibers bonded with a thermoset resin to form a uniformly textured yellow blanket insulation.

Limitations: This product is designed for use in interior (weather protected) walls and roofs of pre-engineered metal buildings. It should be laminated on a first-in, first-out basis and should be kept dry at all times during processing and end use. After lamination, packaging should not exceed a 5.5:1 compression ratio. For additional information, please refer to the appendix of the NAIMA 202-96 (Rev. 2000) standard.

Applicable Standards:

  • Model Building Codes: ICC
  • Fire Resistance:
  • Fire Hazard Classification: UL 723, ASTM E84, NFPA 255
  • Max. Flame Spread Index: 25
  • Max. Smoke Developed: CAN/ULC-S102-M88
  • Non-combustible: – ASTM E136: Meets requirements

Physical/Chemical Properties:

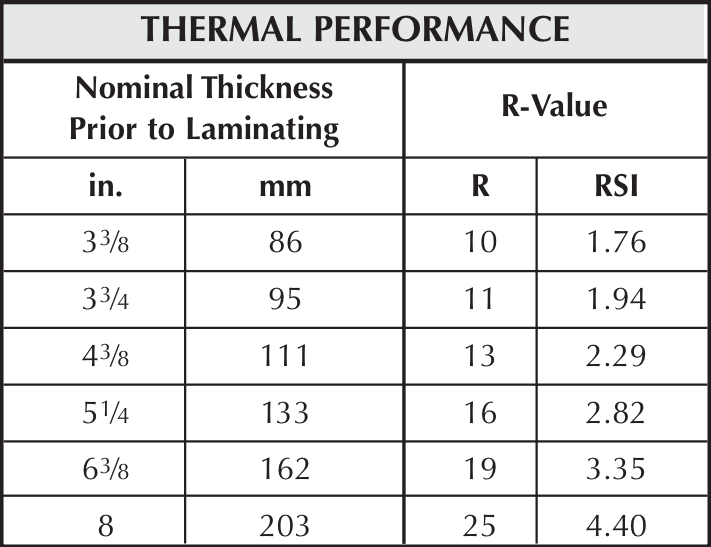

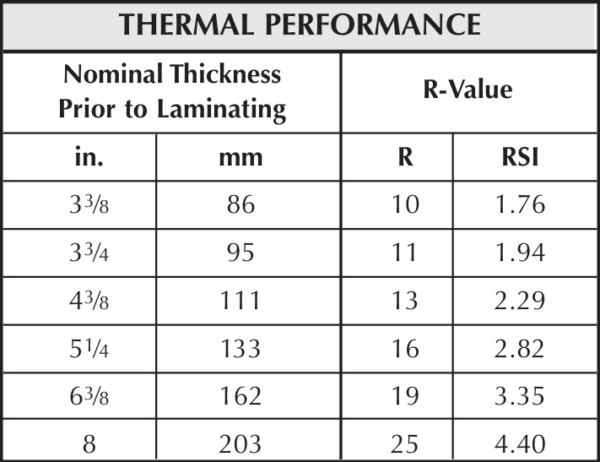

  • Thermal Resistance: ASTM C518 and/or ASTM C177 at 75 ̊F (24 ̊C) mean temperature.

For small quantities, the minimum shipping charge still applies, due to factory cutting, packing, and shipping fees.

Thickness

, , , , , ,

Width

, , , , ,
