- Price:
- Request Quote
- Width:
- 60
- Length:
- 120
- Height:
- 16
- Roof Design Type:
- Double
- Roof Slope:
- 4:12
- Code:
- IBC 2009 Exposure C
- Seismic Category:
- 1
- Wind Load:
- 120 mph
- Roof Snow Load:
- 0 psf
- Stories:
- 1
- Ceiling Height:
- 16
- Live Load:
- 20 psf

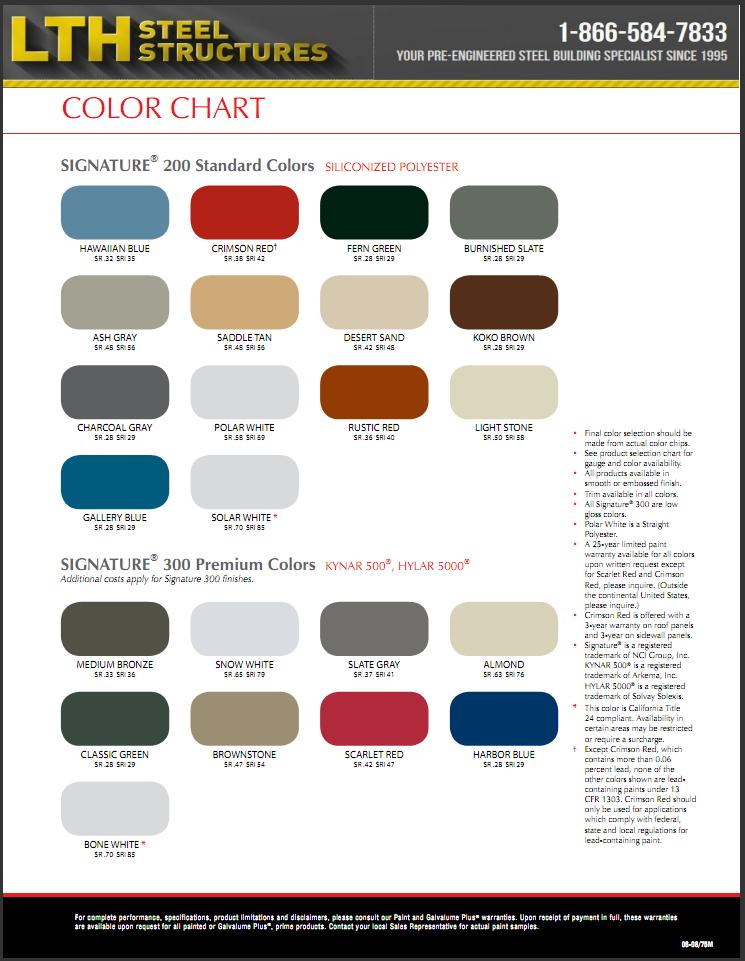

60x120x16 arena metal building system enclosed for sale. Freight included to area location. 2 = 24 ft x 18 ft high framed openings located, one on each end wall. 24 gauged roof and wall panel. choice of standard color for roof, wall and trim. radiant barrier roof insulation. See PDF file for details. 770-781-8279

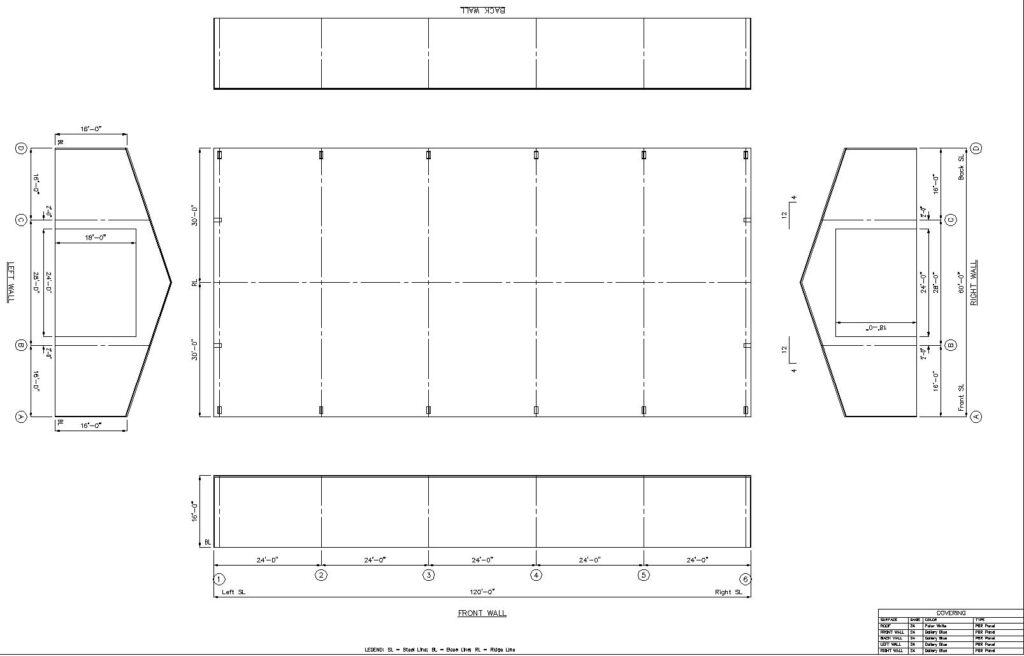

Engineering Design Info:
Building Type: Gabled Building
Width: 60′ Length: 120′ Height: 16′ Slope: 4:12
Sidewall Bay Config: 5 bays at 24 ft
Left End wall: Full-load Expandable Frame Right End wall: Full-load Expandable Frame
LEW Column Spacing: 16 / 28 / 16 REW Column Spacing: 16 / 28 / 16
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 120 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 0 Roof Snow: 0
Seismic: Ss = 0.101 S1 = 0.043 Seismic Coefficient: 0.16 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Doors & Factory Located Framed Opening Summary:
Size: 24X18 Wall: Left End wall Bay: B Align: Center
—-No door selected for this framed opening—-door provided by others.
Size: 24X18 Wall: Right End wall Bay: E Align: Center
—-No door selected for this framed opening—-door provided by others.
Other Accessories:
Description Qty Color
Doors Type M3070 (Wind loaded) (3ft X 7ft) 2 White
Swing Option: Left Handed
Option: Insulated Option Standard
Lock Option: Standard Duty Lever Handle Lock
Walk door Keyed Option: Doors are not keyed alike.
Insulation:
Description Thickness Location Sq Feet
Solar Guard Foil Interior R-11 1/4″ Roof Only 8363
Includes double sided tape and 1 roll(s) of patch tape.
Wall Fastener Type: Long Life Length: 1 1/4″
Roof Fastener Type: Long Life Length: 1 1/4″
