75' x 175' x 16' Steel Building for Sale - Gates, NC 27937

75x175x16 prefab metal building system for sale. 1-866-584-7833. See PDF file for details on this building. We may reconfigure the building for your specific needs. Kynar color choices for trim, roof and wall panels. 24 gauges steel panels are included on this building system with 6" roof and wall insulation and other items.

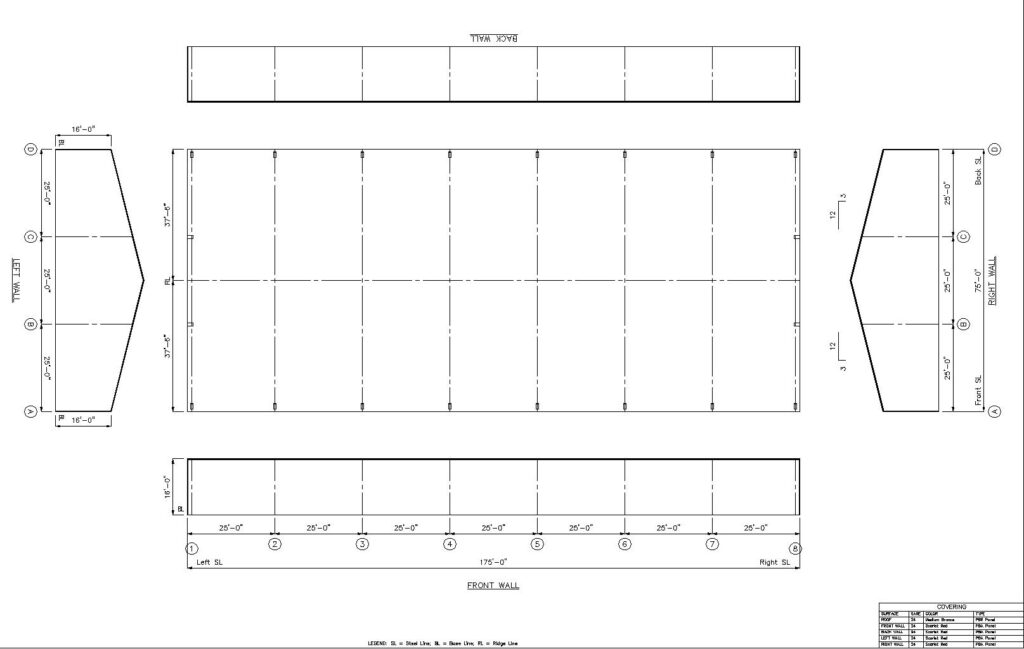

Engineering Design Info:

Building Type: Gabled Building

Width: 75' Length: 175' Height: 16' Slope: 3:12
Sidewall Bay Config: 7 bays at 25 ft

Left Endwall: Full-load Expandable Frame Right Endwall: Full-load Expandable Frame

LEW Column Spacing: 25 / 25 / 25 REW Column Spacing: 25 / 25 / 25

LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass

Column Shape: Tapered

Code: NCBC 2009 Wind Load: 120 Exposure: C
Live Load: 25 Reducible: No Ground Snow: 30 Roof Snow: 30
Seismic: Ss = 0.13 S1 = 0.053 Seismic Coefficient: 0.21 Collateral Load: 1
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0

Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf

See PDF file for details 770-781-8279 larry@lthsteelstructures.com

or
or
Building Type:
Red Iron
Price:
Priced per site location
Width:
75'
Length:
175'
Height:
16'
Roof Design Type:
Double
Roof Slope:
3:12
Code:
NCBC 2009 Exposure C
Seismic Category:
1
Wind Load:
120 mph
Roof Snow Load:
30 psf
Stories:
1
Ceiling Height:
16'
Live Load:
25 psf
Details:
