40' x 80' x 20' Steel Building for Sale - FERNANDINA, FL 32034

Prefab metal building for sale 40x80x20, standard color choice for walls and trim, includes 3, commercial grade quality windrated overhead doors. See PDF file for details, shipping included to location, add tax. 770-781-8279 larry@lthsteelstructures.com

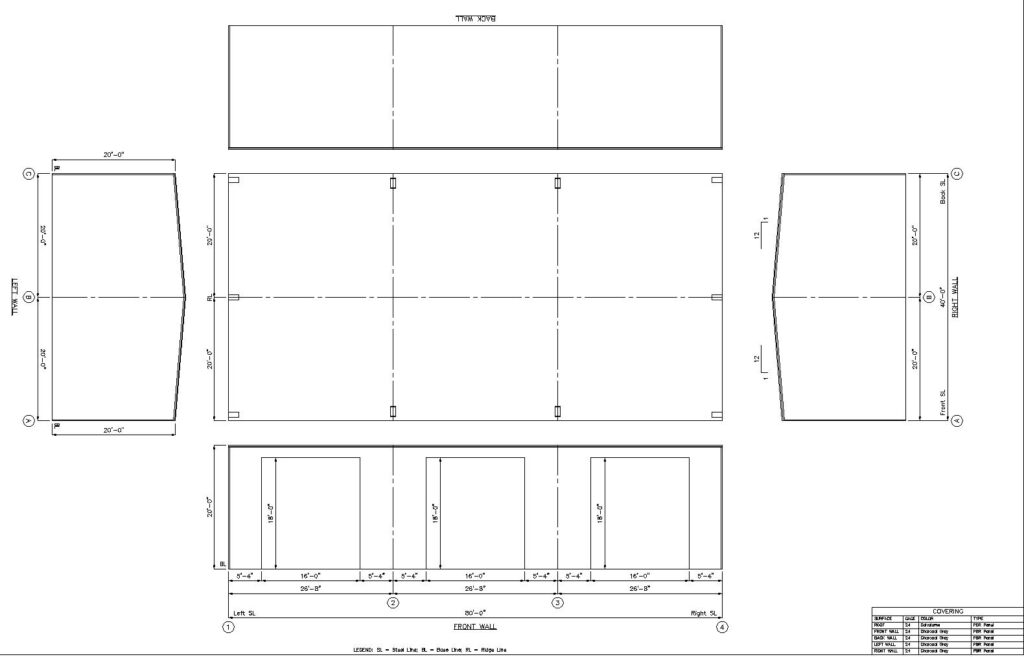

Engineering Design Info:
Building Type: Gabled Building
Width: 40' Length: 80' Height: 20' Slope: 1:12
Sidewall Bay Config: 3 bays at 26 ft 8 in
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 20 / 20 REW Column Spacing: 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Straight
Code: IBC 2009 Wind Load: 110 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 0 Roof Snow: 0
Seismic: Ss = 0.167 S1 = 0.068 Seismic Coefficient: 0.27 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions

Building Colors:
Wall: Charcoal Gray (24 Gauge PBR) Roof: Galvalume Plus (24 Gauge PBR)
Eave Trim: Charcoal Gray
Downspout: N/A Corner Trim: Charcoal Gray Jamb/Header Trim: Charcoal Gray

Other Accessories:
Description Qty Color
Doors Type M3070 (Windloaded) (3ft X 7ft) 1 Bronze
Swing Option:Left Handed
Option:Insulated Option Standard
Lock Option:Standard Duty Lever Handle Lock

Insulation:
----No Insulation Selected-----
Wall Fastener Type: Standard Length: 1 1/4"
Roof Fastener Type: Long Life Length: 1 1/4"

This size steel structure can be made into a steel frame home by adding various partition walls and other building materials. Closed cell spray foam is a great way to insulate to reduce moisture and get an air tight building envelope making it energy efficient. LTH Steel Structures can also supply light gauge steel framing for interior walls if requested. A complete Layout would need to be sent with dimensions so we can price and include the shipping to your building site.

or
or
Building Type:
Red Iron
Price:
Priced per site location
Width:
40'
Length:
80'
Height:
20'
Roof Design Type:
Double
Roof Slope:
1:12
Code:
IBC 2009 Exposure C
Seismic Category:
1
Wind Load:
110 mph
Roof Snow Load:
0 psf
Stories:
1
Ceiling Height:
20'
Live Load:
20 psf
Details:
